420UF 1100V Dat Power Electronic Capacitor for PCB

FOB Reference Price:Get Latest Price
  • 10 - 999
    US $50.00
  • >=1000
    US $30.00
Supply Ability:
1000000 Piece/Pieces per Month
Port:
HongFarad
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hongfarad
Model Number:
DAT
Type:
Power electolytic
Application:
General Purpose
Package Type:
Through Hole
Capacitance:
24UF~5600UF
Rated Voltage:
600VDC~4000VDC
Operating Temperature:
-40~85
Reference Standard:
GB/T 17702 (IEC 6107)
Capacitance tolerance:
5% 10%
Packaging & Delivery
Packaging Details
Reel/Tube/Bag
Delivery Time
3-4 weeks after order confirmed

Product Description

Features and Applications

1. Used in DC-Link circuits(e.g.used in the circuits of converter or inverter),can replace electrolytic capacitor.
2. Low ESR,Low ESL,Can withstanding high r.m.s current

3. Self-healing property,Segmented metallized-film design
4. Aluminum case,Epoxy resin sealing



Specifications

Reference Standard:       IEC 61071, GB/T 17702

Climatic Category:           40/85/21

Rated Voltage:                800Vd.c~1200Vd.c

Capacitance Range:       70uf~1400uf

Capacitance Tolerance:   ±5%(J) , ±10%(K)

Voltage Proof:                 Between terminals, 1.5 Ur (60S)

                                        Between terminals and case,  3 000Va.c(10s)

  Dissipation Factor:        ≤0.2%  (20ºC,100Hz)

Insulation Resistance:     ≥3 000S   (20ºC, 500V)



Outline Drawing

Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers





Company Information

 Welcome to visit our factory!

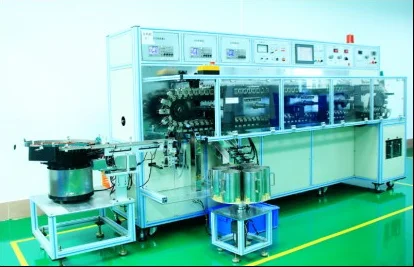

Our Laboratory





FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods required urgently, please contact us firstly.
