CBB20 MPA axial polypropylene film capacitor for Louder Speaker

FOB Reference Price:Get Latest Price
US $0.05-0.7 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB20 MPA
Type:
Polypropylene Film Capacitor
Application:
SMPS applications
Package Type:
Through Hole
Capacitance:
0.001uf~15.0uf
Rated Voltage:
100V,250V,400V,630V
Operating Temperature:
40/085/21
Capacitance tolerance:
±5%(J),±10%(K),±20%(M)
Voltage Proof:
1.6Ur(5s)
Dissipation Factor:
≤10*10-4 (1kHz , 20℃)
Rated Temperature:
85℃
Reference Standard:
GB/T 10190 (IEC 60384-16)
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Port
HongKong
Lead Time :
3-4 weeks after your diposit
Product Description

Features and Applications

1. Metallized polypropylene film, non-inductive type,axial
2. Excellent self-healing property
3. Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin

4. Temperature compesation circuits, timing, osillator circuits

5. Power facotor correction and coupling capacitor in SMPS applications.



Specifications

Reference Standard  GB/T 10190 (IEC 60384-16)

Climatic Category 40/085/21

 Rated Temperature  85℃

 Rated Voltage  100V,250V,400V,630V

Capacitance Range 0.001uf~15.0uf

Capacitance Tolerance ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof 1.6Ur(5s)

Dissipation Factor≤0.1%(20℃,1KHz)

Insulation Resistance ≥30 000MΩ, Cr0.33uf 10 000s   Cr>0.33uf     (20,100V,1 min)



Outline Drawing

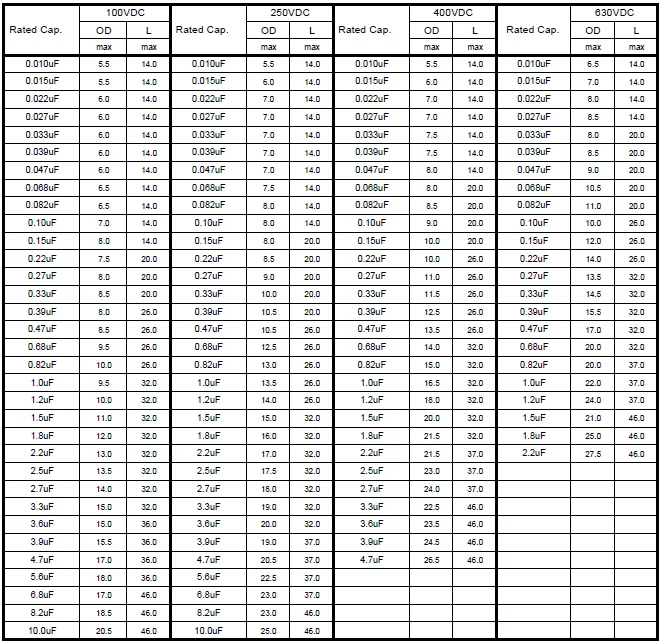

Dimensions(mm)



Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

Company Information

Welcome to visit our factory!



Our Workshop

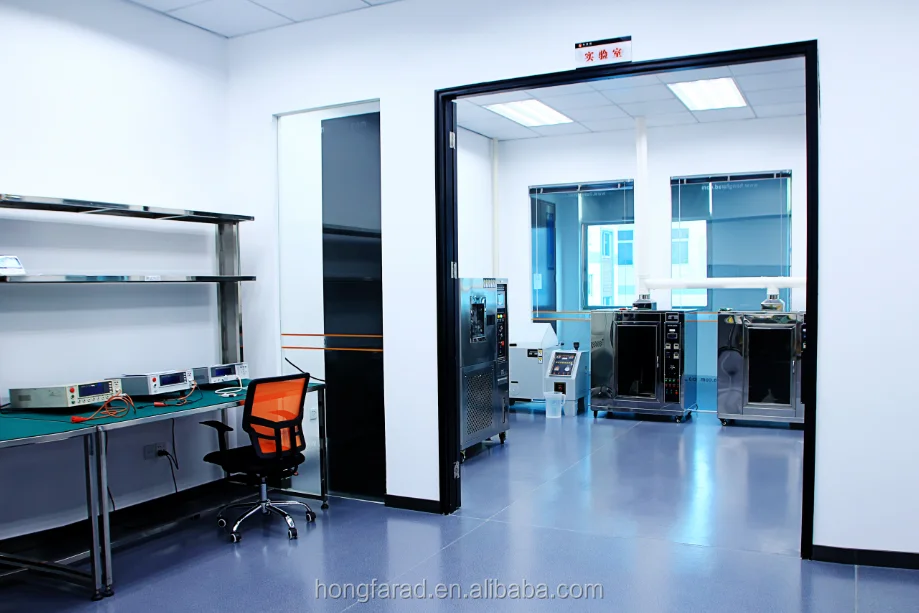

Laboratory



FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods required urgently, please contact us firstly.
