Good price Metallized polypropylene film A.C. capacitor for capacitive divider CBB62B MKB

FOB Reference Price:Get Latest Price
US $0.2-1 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Super Capacitor
capacititive divider, energy meter, LED driver
Package Type:
Bulk or ammo packing
0.001uf~4.7uf(available on request
Rated Voltage:
310VAC, 310VAC
Operating Temperature:
Capacitance tolerance:
±10%(K),±20%(M)(Other tolerance available on request)
Rated Temperature::
Reference Standard:
GB/T 14472 (IEC 60384-14)
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Shenzhen, China
Lead Time :
2-3 weeks after order confirmed
Product Description

 Features and Applications

  1. This is specifically designed for applications in serial with the 100~240VAC main, i.e.:capacitive divider,

      for example,energy meter, LED driver etc.
  2. Metallized polypropylene structure
  3. Good self-healing properties,withstanding surge voltage stressing
  4. Long stability of capacitance
  5. Good properties in damp environment
  6. Excellent active and passive flame resistant abilities




Reference Standard:      GB/T 14472 (IEC 60384-14)

Safety Approvals:           CQC   ENEC-VDE    UL-CUL

Class:                             X2

Climatic Category:          40/110/56/B

Operating Temperature Range:-40℃~+110℃

Rated Voltage:               310VAC

Capacitance Range:      0.001uf~4.7uf(available on request)

Capacitance Tolerance: ±10%(K),±20%(M)(Other tolerance available on request)

Voltage Proof:                   Between terminals, 1800(Vdc)(2s) Cr≤1.0uF

                                          Between terminals to case, 2050(Vac)(60s)

Endure impulse voltage:    2000V

Insulation Resistance:        ≥15 000MΩ, Cr0.33uf

                                           ≥5 000s   Cr>0.33uf     (20,100V,1 min)

Dissipatin Factor:               ≤0.1% (1kHz,20℃);  ≤0.2% (10kHz,20℃)

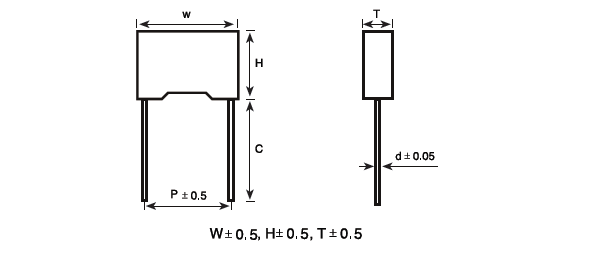

Outline Drawing

 MKB Drawing.png

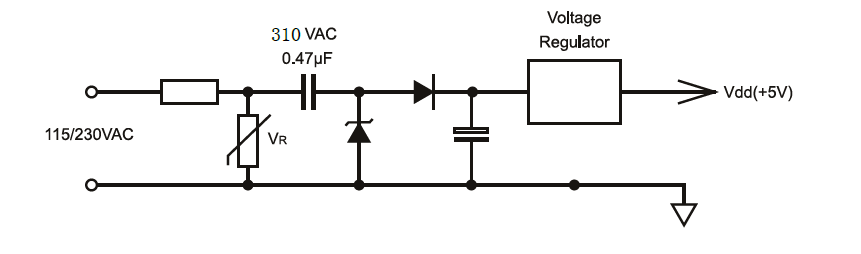

 Typical Circuit (0.47uF)

MKB typical circuit.png

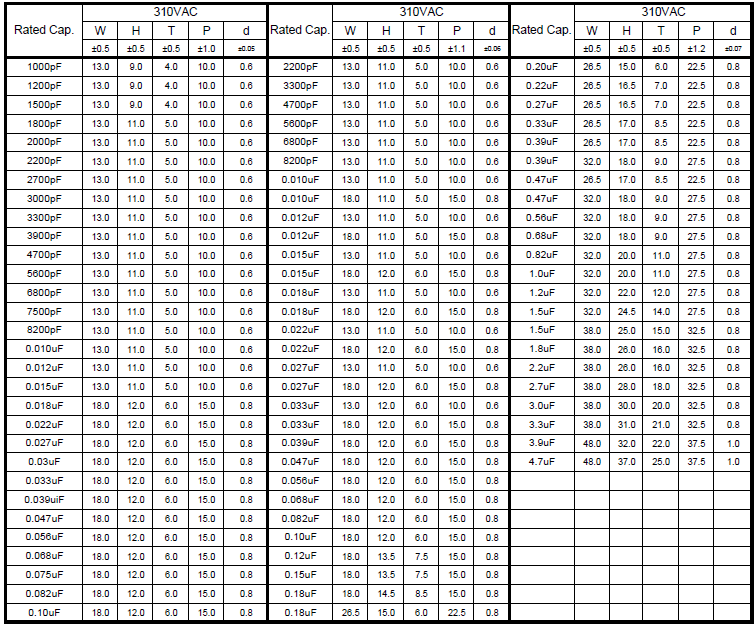

MKB Dimensions.png
