CL21 capacitor Metallized polyester film capacitor(Dipped) for LED lighting MEF

FOB Reference Price:Get Latest Price
US $0.15-1 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongfarad
Model Number:
CL21 MEF
Type:
Polyester Film Capacitor
Application:
General Purpose
Package Type:
bulk/ammo packing
Capacitance:
0.01uf~10.0uf
Rated Voltage:
50/63V,100V,250V,400V,630V, 1000V,1250V
Operating Temperature:
-40°C~105°C
Capacitance tolerance:
5%(J) 10%(K)
Climatic Category:
40/105/21
Voltage Proof:
1.6Ur(5s)
Dissipation Factor:
≤1.0% (20°C,1kHz)
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Port
Shenzhen, China
Lead Time :
2-3 weeks after order confirmed
Product Description

Features and Applications

1.Metallized polyester film , non-inductive wound construction
2.Wide capacitance range , small size , and light weight
3.Long life due to self-healing effect
4.Flame retardation epoxy resin coating

5. Suitable for blocking, by-pass and coupling of DC and signals to VHF range

6. Widely used in filter and low pulse circuits



Specifications

 Reference Standard:          GB/T 7332 (IEC 60384-2)

Climatic Category:               40/105/21

  Rated Temperature:           85℃

 Rated Voltage:                    50/63V, 100V,250V,400V,630V, 1000V,1250V

Capacitance Range:             0.01uf~10.0uf

Capacitance Tolerance:       ±5%(J) , ±10%(K)

Voltage Proof:                      1.6Ur(5s)

Dissipation Factor:                1.0%(20℃,1KHz)

Insulation Resistance :        Ur≤100V,  3 750MΩ, Cr0.33uf

                                                              ≥1 250s   Cr>0.33uf    (20,10V,1 min)

                                                 Ur>100V ,  9 000MΩ, Cr0.33uf

                                                              ≥3 000s   Cr>0.33uf    (20,100V,1 min)



Outline Drawing

MEF Drawing

Dimensions(mm)

MEF Dimensions





Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers



Company Information

Welcome to visit our factory!

Hongfarad factory 1

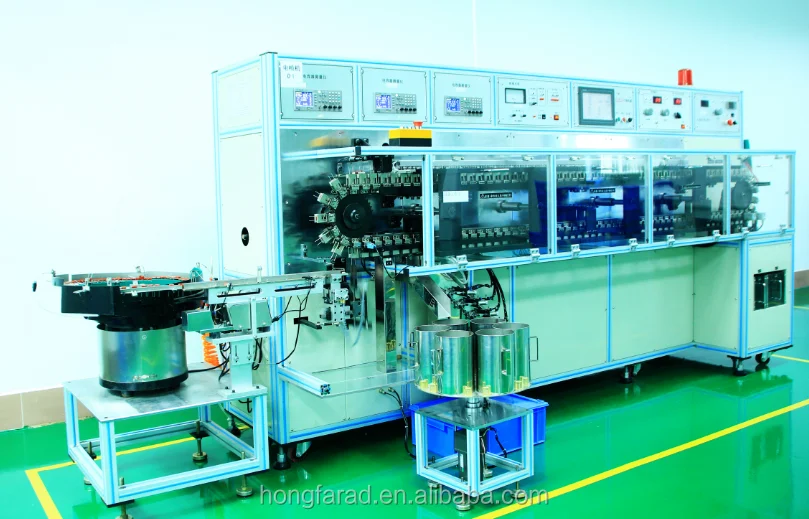

Our workshop

Winding dep. Electric inspection dep.



Laboratory

Hongfarad lab

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
