Metallized polypropylene film filter type capacitor CBB662A

FOB Reference Price:Get Latest Price
US $0.015-0.7 / Piece | 10000 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week
Port:
HongKong China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB662A
Type:
Polypropylene Film Capacitor
Application:
AC / Motor
Package Type:
Through Hole
Capacitance:
X2-range:0.1 1.2μF Y2-range:0.0027 0.033μF
Rated Voltage:
250VAC
Operating Temperature:
40/100/21/C
Capacitance tolerance:
±10%(K) ±20%(M)
Voltage Proof:
X2 Cap:1250VAC/1414VDC 2 Sec Y2 Cap:2000VAC/2700VDC 2 Sec
Dissipation Factor:
0.1% MAX.(at 1KHz)
Rated Temperature:
-40 +105℃
Reference Standard:
GB/T 14472 (IEC 60384-14)
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Delivery Time
3-4 weeks after order confirmed
Product Description

Features and Applications

1.Space saving PWB capacitor network has one X & two Y caps.
2.Excellent common and differential mods capability in a wide capacitance range.
3.Installed cost saving with single package design.



 Specifications

Reference Standard:        GB/T 14472 (IEC 60384-14)
  Climatic Category:          40/100/21/C
  Rated Temperature:       -40 +105℃
  Class:                              X2+2*Y2

Rated Voltage:                  250VAC
  Capacitance Range:      X2-range:0.1 ~ 1.2μF
                                           Y2-range:0.0027 ~ 0.033μF
  Capacitance Tolerance: ±10%(K) ±20%(M)
  Voltage Proof:                X2 Cap:1250VAC/1414VDC 2 Sec
                                           Y2 Cap:2000VAC/2700VDC 2 Sec
  Dissipation Factor:         0.1% MAX.(at 1KHz)
  Insulation Resistance:   X2Y Cap≤0.33μF min 15,000MΩ
                                          X2Y Cap>0.33μF min 6,000MΩ*μF

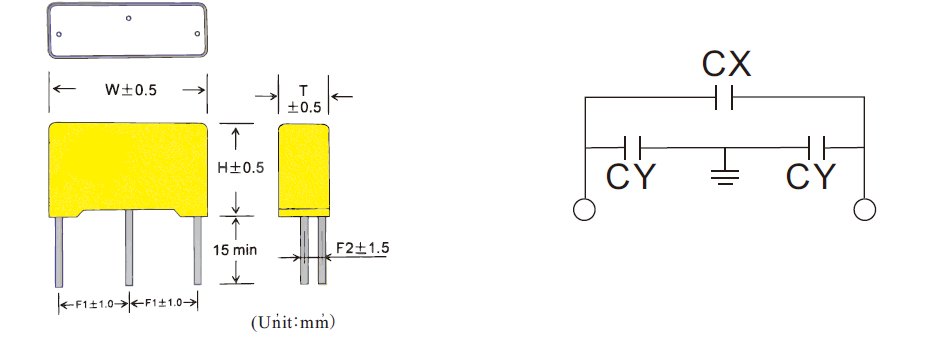

Outline drawing






Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers



Company Information

 Welcome to visit our factory!

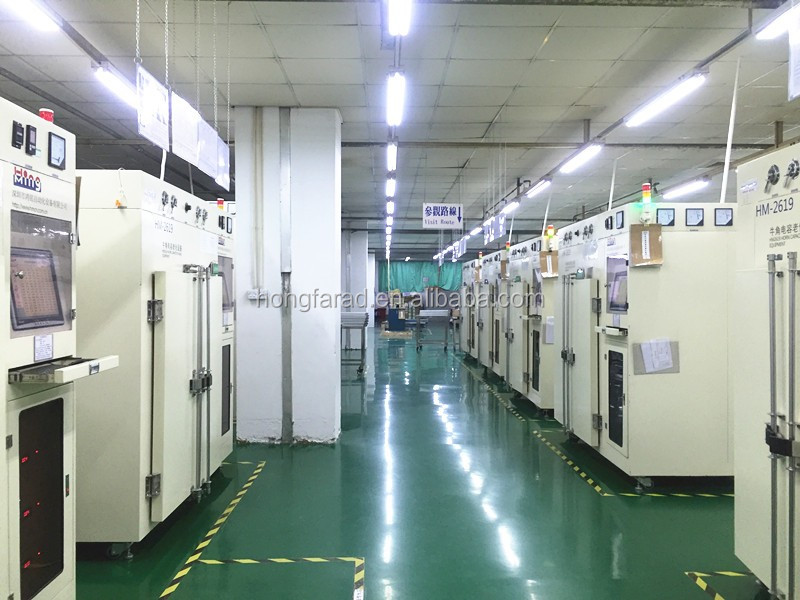

Our Workshop

Certifications

Product Certifications

Every type of our company products has been test by authority, and up to the international standand.





FAQ

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods required urgently, please contact us firstly.
