Metallized polypropylene film capacitor cbb21 334j 400v (Box-type) MPB

FOB Reference Price:Get Latest Price
US $0.05-0.7 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB21B MPB
Type:
Polypropylene Film Capacitor
Application:
General Purpose
Package Type:
Bulk or ammo packing
Capacitance:
0.0047uf~3.3uf
Rated Voltage:
250VDC(160VAC);400VDC(220VAC);630VDC(250VAC);1000VDC(500VAC)
Operating Temperature:
40/105/21
Capacitance tolerance:
±2%(G), ±3%(H), ±5%(J) , ±10%(K) , ±20%(M)
Voltage Proof:
1.6Ur(5s)
Dissipation Factor:
≤ 0.1%(1kHz , 20℃)
Rated Temperature:
85℃
Reference Standard:
GB/T 10190 (IEC 60384-16)
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Port
Shenzhen, China
Lead Time :
2-3 weeks after order confirmed
Product Description
Features
1.Metallized polypropylene structure.
2.Low loss at high frequency
3.Small inherent teperature rise
4.Plastic case (UL94 V-0), epoxy resin sealing

Typical Applications

1.Widely used in high frequency , DC, AC and pulse circuits
2.S-correction circuits for TV sets and monitors


Specification
Reference Standard:      GB/T 10190 (IEC 60384-16)
Climatic Category:          40/105/21
Rated Temperature:       85℃
Rated Voltage:               250Vdc(160Vac);400Vdc(220Vac);630Vdc(250Vac);1000Vdc(500Vac)
Capacitance Range:       0.0047uf~3.3uf
Capacitance Tolerance:  ±2%(G), ±3%(H), ±5%(J) , ±10%(K), ±20%(M)
Voltage Proof :               1.6Ur(5s)
Dissipation Factor:          ≤0.1%(20℃,1KHz)
Insulation Resistance:    ≥30 000MΩ, Cr≤0.33uf
                                       ≥10 000s   Cr>0.33uf     (20℃,100V,1 min)

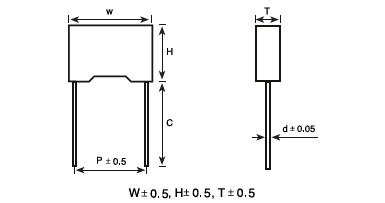

Outline Drawing
MPB DRA

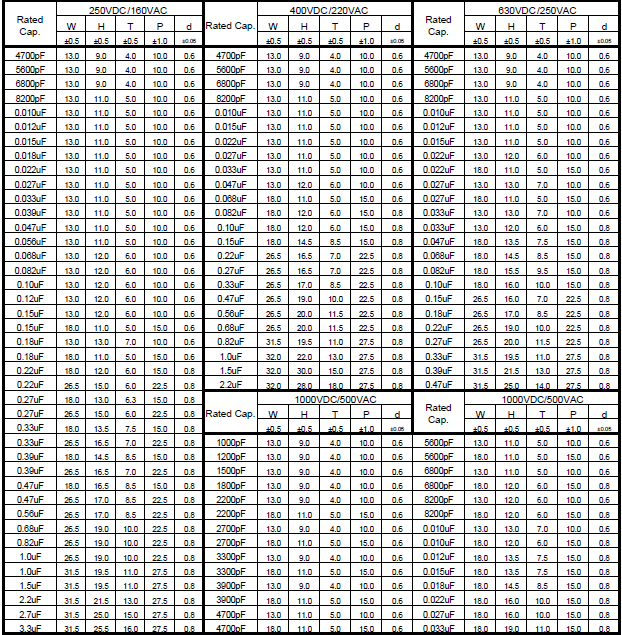

Dimensions(mm)
MPB Dimensions





Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers






Company Information

Welcome to visit our factory!

Hongfarad factory 1



Our workshop

Winding dep. Electric inspection dep.



Laboratory

Hongfarad lab

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
