CBB62B Metallized polypropylene film A.C. capacitor for capacitive divider MKP-B

FOB Reference Price:Get Latest Price
US $0.2-1 / Piece | 500 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week
Port:
Shenzhen, China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB62B MKB
Type:
Super Capacitor
Application:
capacititive divider, energy meter, LED driver
Package Type:
Bulk or ammo packing
Capacitance:
0.001uf~4.7uf(available on request
Rated Voltage:
310VAC, 310VAC
Operating Temperature:
40/110/56/B
Capacitance tolerance:
±10%(K),±20%(M)(Other tolerance available on request)
Rated Temperature::
-40℃~+110℃
Class:
X2
Reference Standard:
GB/T 14472 (IEC 60384-14)
Safety Approvals:
CQC, ENEC-VDE, UL/CUL,
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Delivery Time
2-3 weeks after order confirmed
Product Description

 Features and Applications

  1. This is specifically designed for applications in serial with the 100~240VAC main, i.e.:capacitive divider,

      for example,energy meter, LED driver etc.
  2. Metallized polypropylene structure
  3. Good self-healing properties,withstanding surge voltage stressing
  4. Long stability of capacitance
  5. Good properties in damp environment
  6. Excellent active and passive flame resistant abilities



Specifications



Reference Standard:                      GB/T 14472 (IEC 60384-14)

Safety Approvals:                           CQC   ENEC-VDE    UL-CUL

Class:                                             X2

Climatic Category:                         40/110/56/B

Operating Temperature Range:    -40℃~+110℃

Rated Voltage:                              310VAC

Capacitance Range:                     0.001uf~4.7uf(available on request)

Capacitance Tolerance:               ±10%(K),±20%(M)(Other tolerance available on request)

Voltage Proof:                              Between terminals, 1800(Vdc)(2s) Cr≤1.0uF

                                                     Between terminals to case, 2050(Vac)(60s)

Endure impulse voltage:              2000V

Insulation Resistance:                 ≥15 000MΩ, Cr0.33uf

                                                    ≥5 000s   Cr>0.33uf     (20,100V,1 min)

Dissipatin Factor:                        ≤0.1% (1kHz,20℃);  ≤0.2% (10kHz,20℃)



Outline Drawing

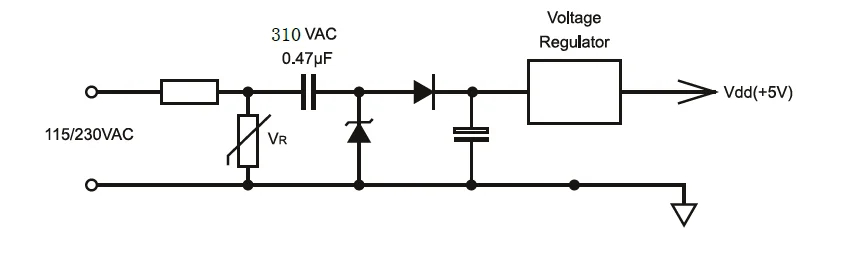

 Typical Circuit (0.47uF)

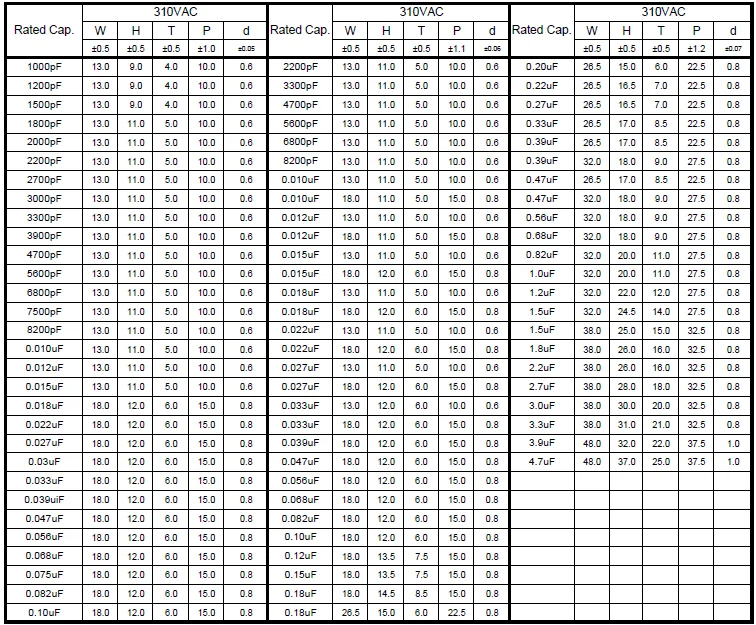

Dimensions(mm)





Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers



Company Information

 Welcome to visit our factory!



Our workshop





Laboratory





FAQ



 Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
