Metallized polyester film capacitor(Box-type) CL21X MEB

FOB Reference Price:Get Latest Price
US $0.05-0.8 / Piece | 500 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week
Port:
HongKong, China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongfarad
Model Number:
CL21X MEB
Type:
Polyester Film Capacitor
Application:
General Purpose
Package Type:
Bulk or ammo packing
Capacitance:
0.001uf~1.0uf
Rated Voltage:
100V,160V,250V,400V,630V,1000V
Operating Temperature:
40/105/21
Capacitance tolerance:
±5% (J), ±10% (K), ±20%(M)
Rated Temperature:
85℃
Voltage Proof:
1.6Ur(5s)
Reference Standard:
GB/T 7332(IEC 60384-2)
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Delivery Time
3-4 weeks after order confirmed
Product Description

 Features

1. High reliability
2. Metallized polyester film, non-inductive wound construction
3. Plastic case(UL94 V-0) , Epoxy resin sealing



Typical Applications

1. By-passing, blocking, coupling, decoupling

2. Pulse, logic, timing, oscillator, circuits

3. Interference suppression in low voltage application



Specifications

Reference Standard:      GB/T 7332(IEC 60384-2)

Climatic Category:         40/105/21

Rated Voltage :             100V,160V,250V,400V,630V

Capacitance Range:      0.001uf~10.0uf

Capacitance Tolerance: ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof :              1.6Ur(5s)

Dissipation Factor:         ≤1.0% (at 1KHz) 1.5% (at 10KHz) 3.0% (at 100KHz)

Insulation Resistance:   90 000MΩ, Cr0.33uf

                                       ≥3 000s   Cr>0.33uf     (20,100V,1 min)

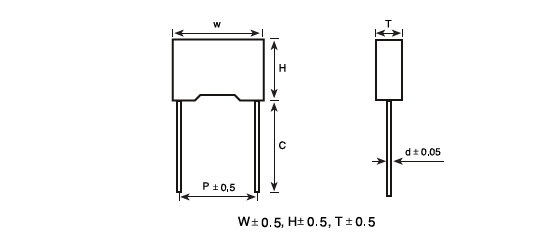

Outline Drawing

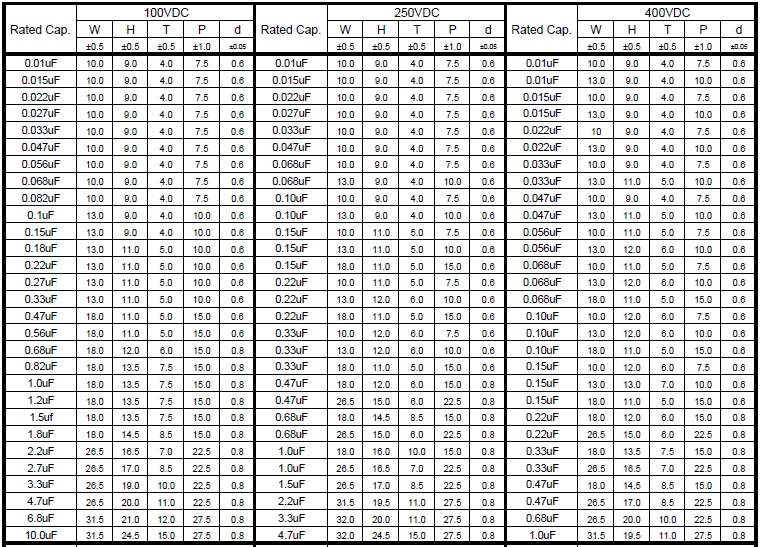

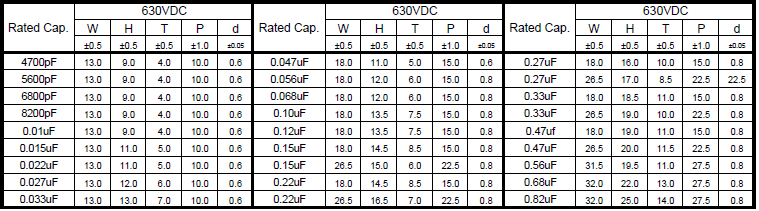

Dimension(mm)



Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers





Company Information

Welcome to visit our factory!



Our workshop





Laboratory



FAQ



 Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
