Metallized polypropylene film interference suppression capacitor CBB62 MKP (Class X2, 275Vac/310Vac)

FOB Reference Price:Get Latest Price
US $0.2-1.5 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB62 MKP
Type:
Polypropylene Film Capacitor
Application:
General Purpose
Package Type:
bulk or ammo packing
Capacitance:
0.0010uf~10uf
Rated Voltage:
275/305Vac,310Vac,50/60Hz
Operating Temperature:
40/110/56/B
Capacitance tolerance:
±10%(K), ±20%(M)
Operating Temperature Range:
-40~+110 degree
Class:
X2
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Port
HongKong
Lead Time :
2-3 weeks after order confirmed
Product Description

 Features

1. Metallized polypropylene structure

2. Withstanding overvoltage stressing

3. Excellent active and passive flame resistant abilities

4. Widely used in across-the-line, interference supression circuit, etc



Specifications

Climatic Category:              40/110/56/B

Rated Voltage:                   275/305Vac, 310Vac, 50/60Hz

Capacitance Range:          0.001uf~10.0uf

Capacitance Tolerance:    ±10%(K) , ±20%(M)

Voltage Proof :                   Between Terminals, 2000Vdc(2s) Cr≤1.0uF,  1800Vdc(2s) Cr>1.0uF

                                           Between Terminals to case, 2110Vac(1min)

Insulation Resistance:        ≥15000MΩ, Cr0.33uf

                                           ≥5000s   Cr>0.33uf     (20,100V,1 min)

Dissipation Factor:             0.0010uF≤Cr≤0.47uF ,   ≤0.1%(20℃,1KHz),    ≤0.2%(20℃,10KHz)

                                          0.47uF

                                          Cr>1.0uF,                     ≤0.3%(20℃,1KHz)

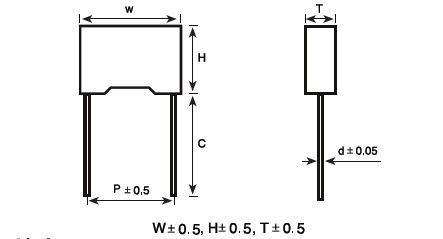

Outline Drawing

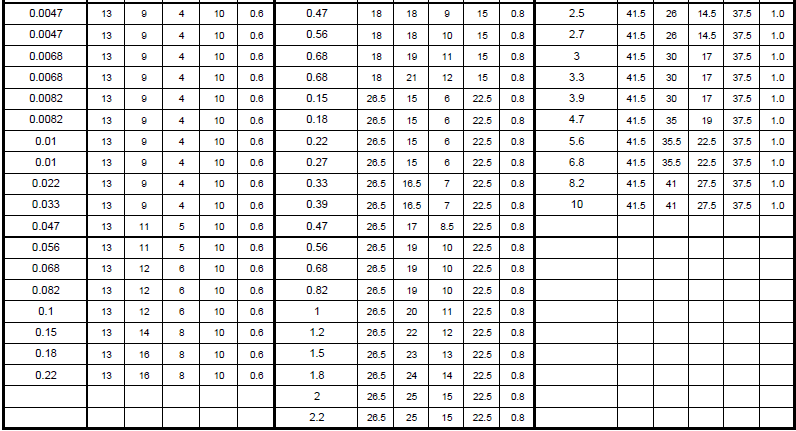

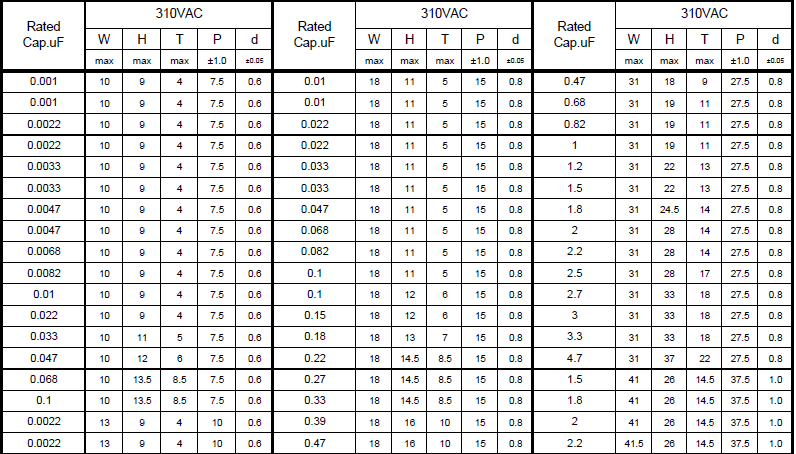

Dimensions(mm)





Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers
