Axial type CL20T MET Metallized polyester film capacitor

FOB Reference Price:Get Latest Price
US $0.15-1.5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongfarad
Model Number:
CL20T
Type:
Polypropylene Film Capacitor
Application:
General Purpose
Package Type:
Bulk or ammo packing
Capacitance:
0.0010uf~10.0uf
Rated Voltage:
50V, 63V, 100V, 250V, 400V, 630V,1000V
Operating Temperature:
40/105/21
Capacitance tolerance:
±5%(J) , ±10%(K) , ±20%(M)
Rated Temperature:
85℃
Voltage Proof:
1.6Ur(5s)
Dissipation Factor::
≤1.0%(20℃,1KHz)
Reference Standard:
GB/T 7332 (IEC 60384-2)
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Port
HongKong, China
Lead Time :
3-4 weeks after order confirmed
Product Description
Features and Applications
1. Metallized polyester film, non-inductive wound construction
2. Small size light weight, excellent self-healing property
3. Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin.
4. Suitable for Blocking, by-pass, coupling, and decoupling.



 Specifications

 Reference Standard:         GB/T 7332 (IEC 60384-2)

Climatic Category:             40/105/21

 Rated Temperature:          85℃

 Rated Voltage:                  50V, 63V, 100V,250V,400V,630V, 1000V

Capacitance Range:          0.0010uf~10.0uf

Capacitance Tolerance:    ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof:                   1.6Ur(5s)

Dissipation Factor:           ≤1.0%(20℃,1KHz)

Insulation Resistance:     Ur≤100V,   3750MΩ, Cr0.33uf

                                                              ≥1250s   Cr>0.33uf    (20,10V,1 min)

                                            Ur>100V,  30 000MΩ, Cr0.33uf

                                                              ≥10 000s   Cr>0.33uf    (20,100V,1 min)

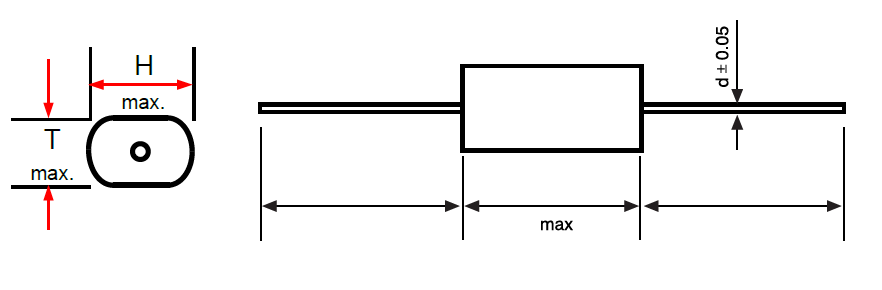

Outline Drawing

CL20T Drawing


Dimensions(mm)

MET CL20T Dimensions





Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

Company Information

Welcome to visit our factory!

Hongfarad factory 1



Our workshop

Winding dep. Electric inspection dep.



Laboratory

Hongfarad lab

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
