Polypropylene film / foil capacitor (Non-inductive) CBB13 PPN

FOB Reference Price:Get Latest Price
US $0.05-0.5 / Piece | 500 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week
Port:
Shenzhen China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hongfarad
Model Number:
CBB13 PPN
Type:
Polypropylene Film Capacitor
Application:
high frequency , DC and pulse circuits
Package Type:
Through Hole
Capacitance:
0.001uf~0.1uf
Rated Voltage:
63V, 100V, 200V, 250V, 400V, 630V
Operating Temperature:
40/105/21
Capacitance tolerance:
±2%(G),±5%(J),±10%(K)
Voltage Proof:
2.0Ur(5s)
Dissipation Factor:
≤0.1% (1kHz , 20℃)
Rated Temperature:
85℃
Reference Standard:
GB/T 10188 (IEC 60384-13)
Packaging & Delivery
Packaging Details
Standard Carton Ctn box (loose in bags)
Delivery Time
2-3 weeks after your diposit
Product Description

Features

1.Film/foil , non-inductive wound type, dipped
2.Excellent frequency and temperature characteristics

3.Very small loss even at high frequency
3.Flame retardant epoxy resin powder coating(UL94/V-0)


Typical Applications
 Widely used in high frequency, DC and pulse circuits

 Specifications
 Reference Standard:         GB/T 10188(IEC 60384-13)
Climatic Category:             40/105/21
 Rated Temperature:         85℃
 Rated Voltage:                63V,100V,200V,250V,400V,630V
Capacitance Range:        0.001uf~0.10uf
Capacitance Tolerance:   ±2%(G), ±5%(J) , ±10%(K)
Voltage Proof:                  2.0Ur(5s)
Dissipation Factor:           ≤0.1%(20℃,1KHz)
Insulation Resistance:     ≥50 000MΩ  Cr≤0.1uF
                                        ≥5 000S     Cr>0.1uf  (20, 100V, 1 min)

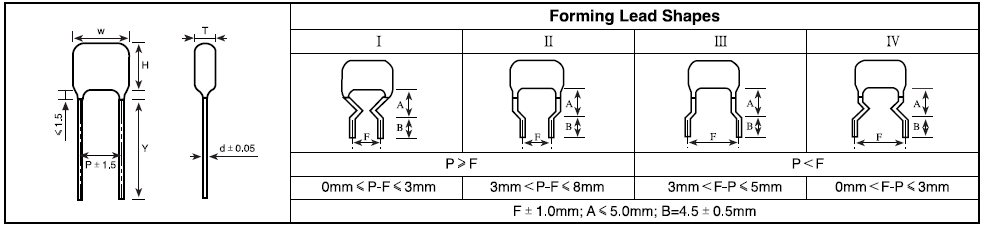

Outline Drawing



Dimensions(mm)


Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers



Company information

Welcome to visit our company!

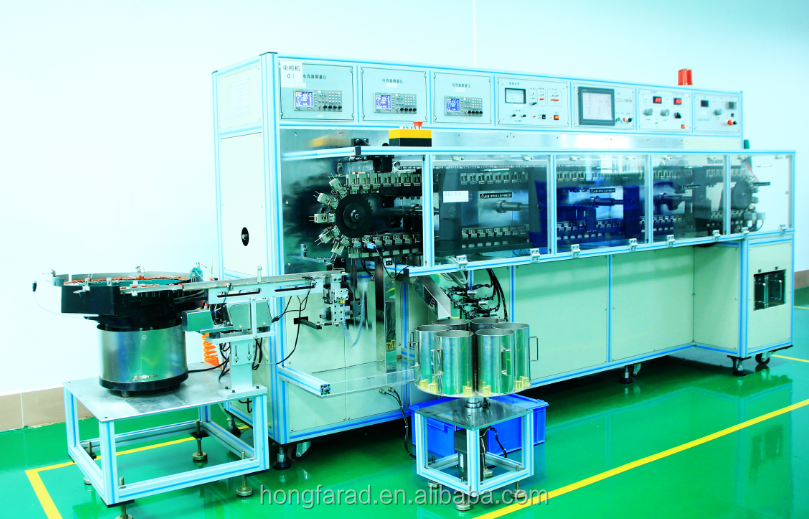

Our workshop





Laboratory



FAQs

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.



Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.



Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.



Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
